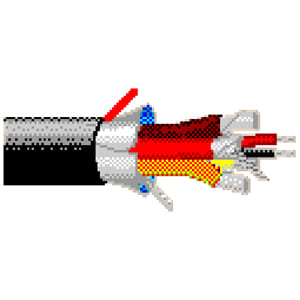

1517C - Instrumentation Cable (24 AWG, 26-Pair, 300V)

Belden 1517C is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.

This cable features 26 pairs of 24 AWG, 7-strand tinned copper conductors with individually foil shielded pairs and an overall Beldfoil shield. Rated for 300V, the cable uses Polyolefin (PO) insulation and a Polyvinylchloride (PVC) jacket, with 0.111-inch jacket thickness and insulation thickness of 0.04 inches. The cable operates up to 75C and is approved to NEC Type CM standards. Approximate weight is 385 lbs/MFT with Red/Black color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

How many pairs does Belden 1517C have?

Belden 1517C contains 26 individually foil shielded pairs.

What is the voltage rating of Belden 1517C?

This cable is rated for 300 volts.

What shielding does Belden 1517C use?

Belden 1517C has individual foil shields on each pair plus an overall Beldfoil shield.

What NEC type is Belden 1517C?

Belden 1517C is rated NEC Type CM.
