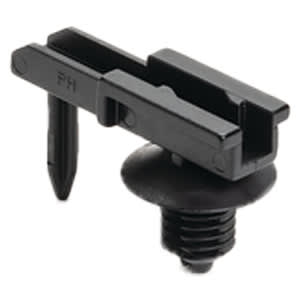

Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. Part number 155-10801 provides this functionality. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.

HellermannTyton Connector Clips provide a single method to mount connectors to various surfaces in a variety of applications. Highly engineered designs feature anti-rattle discs. anti-rotation oval fir trees and clamps for mounting on edges. An assortment of Connector Cips is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.

The product is made from Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Disc Diameter (Metric) 16.0mm; Mounting Hole Diameter D (Imperial) 0.26 - 0.28"; Mounting Hole Diameter D (Metric) 6.5 - 7.0mm; Mounting Hole Diameter D Max. (Imperial) 0.28"; Mounting Hole Diameter D Max. (Metric) 7.0mm; Mounting Hole Diameter D Min. (Imperial) 0.26"; Mounting Hole Diameter D Min. (Metric) 6.5mm; Mounting Hole Diameter D2 (metric) 4.0mm.

It is available in a length of 33.0mm.

Connection Type AMP Fixation Method Fir tree for round holes Height H (Metric) 20.5mm Mounting Hole Shape Round Panel Thickness (Imperial) 0.03 - 0.24" Panel Thickness (Metric) 0.7 - 6.0mm Panel Thickness Max. (Imperial) 0.24" Panel Thickness Max. (Metric) 6.0mm Panel Thickness Min. (Imperial) 0.03" Panel Thickness Min. (Metric) 0.7mm Weight per 1 Content Unit without Packaging 0.001346 kg Width W (Imperial) 0.63" Width W (Metric) 16.0mm.

Order today for reliable performance and quality.
