156-00429
- Color: Gray
- Height (in): 0.61
- Hole Diameter (in): 0.33
- Length (in): 8.86
- Length L2 (in): 1.48
- Material: Polyamide 4.6
- Max. Bundle Dia. (in): 2.17
- Max. Bundle Dia. 1st Hole (in): 2.17
- Min. Bundle Dia. (in): 0.2
- Min. Tensile Strength: 120 lbs, 54.56 kgf
- Operating Temp.: -40 to 266F (-40 to 130C)
- Recommended Application Tool: 110-05005, 110-06000, 110-80000, 110-80001, 110-80003, 110-80004, 110-95000
- Screw Size: M8
- Shape: Round
- Thickness (in): 0.07
- Toothing (Serration): Inside Serrated
- Weight per piece (lbs): 0.017725165879664
- Width (in): 0.3
- Width W2 (in): 0.7874

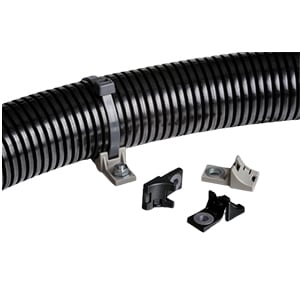

These cable tie mounts attach with a screw or bolt to an existing hole, or secure to a stud with a nut. Part number 156-00429 provides this functionality. They provide an attachment point for securing and routing a single bundle and deliver the highest level of fastening strength for critical cable security.
Tie/mount combination eliminates the need to carry multiple sizes of fixed bundle diameter clamps. Can be assembled directly on harnesses or on production line for installation versatility. Available in PA66 heat-stabilized or PA46. they are suitable for various temperature grades. Designed to meet strict automotive standards. they are well adapted to vibration and lateral forces. Metal inserts withstand high-torque tightening. H-design allows full contact with harnesses or other tubes and hoses. Mainly adapted to T120R and T120S cable ties but can also be assembled with smallest sizes.
The product is made from Polyamide 4.6 (PA46), Polyamide 4.6 (PA46), Polyamide 4.6 (PA46), PA46, PA46 and is engineered for an operating temperature range of -40F to +266F (-40C to +130C) and is supplied in Gray (GY) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Bundle Diameter 1st Hole Max. (Imperial) 2.17"; Bundle Diameter 1st Hole Max. (Metric) 55mm; Bundle Diameter Max. (Imperial) 2.17"; Bundle Diameter Max. (Metric) 55.0mm; Bundle Diameter Min. (Imperial) 0.2"; Bundle Diameter Min. (Metric) 5.0mm; Mounting Hole Diameter D (Imperial) 0.33"; Mounting Hole Diameter D (Metric) 8.4mm.
It is available in a length of 8.86", 225.0mm, 1.48", 37.5mm.
Tensile strength is rated at 120 lbs, 54.56 kgf, 535 N.
Recommended cutting tools include 110-05005; 110-06000; 110-80000; 110-80001; 110-80003; 110-80004; 110-95000.
This product is suitable for applications in Automotive Industry.
Cable Tie Closure plastic pawl Fixation Method Screw Mount Height H (Imperial) 0.61" Height H (Metric) 15.55mm Mounting Hole Shape Round Mounting Screw Type M8 Screw Releasable Closure No Thickness T (Imperial) 0.07" Thickness T (Metric) 1.8mm Toothing (Serration) Inside Serrated Variant Inside Serrated Weight per 1 Content Unit without Packaging 0.00804 kg Width W (Imperial) 0.30" Width W (Metric) 7.6mm Width W2 (Imperial) 0.7874" Width W2 (Metric) 20.0mm.
