156-01295
- Color: Black
- Height (in): 0.87
- Hole Diameter (in): M6 x 1
- Length (in): 8
- Material: Polyamide 6.6 Heat Stabilized, Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 1.97
- Min. Bundle Dia. (in): 0.16
- Min. Tensile Strength: 11.22 kgf, 25 lbs
- Operating Temp.: -40 to 221F (-40 to 105C)
- Shape: Oval
- Stud Size: M6
- Weight per piece (lbs): 0.0060803491910589
- Width (in): 0.55

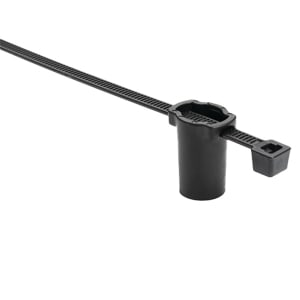

Oval Shaped Stud Mount's special design allows for a 0.2" (5.5mm) lateral adjustment, allowing for any misalignment of the stud or incorrect position of the tie on the cables. Part number 156-01295 provides this functionality. The"soft push" mount allows it to be installed onto a weld stud without the use of any tools.
Head allows for a 0.2" lateral adjustment on stud during installation. Quick and easy installation ideal for manufacturing environment.
The product is made from Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), PA66HS, PA66HIRHSUV and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 1.97"; Bundle Diameter Max. (Metric) 50.0mm; Bundle Diameter Min. (Imperial) 0.16"; Bundle Diameter Min. (Metric) 4.0mm; Mounting Hole Diameter D (Metric) M6 x 1; Stud Diameter (Metric) M6.
It is available in a length of 8.0", 203.2mm.
Tensile strength is rated at 25 lbs, 11.22 kgf, 110 N.
This product is suitable for applications in Automotive Industry;Electronics Industry;Truck Heavy Equipment;Rail Transportation Sector;Shipbuilding.
Cable Tie Closure plastic pawl Fixation Method Stud Mount Height H (Imperial) 0.87" Height H (Metric) 21.5mm Mounting Hole Shape Oval Releasable Closure No Weight per 1 Content Unit without Packaging 0.002758 kg Width W (Imperial) 0.55".
