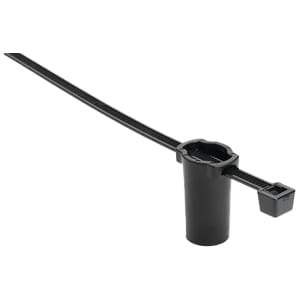

156-01296
- Color: Black
- Height (in): 1.02
- Hole Diameter (in): M6 x 1
- Length (in): 8
- Material: Polyamide 6.6 Heat Stabilized, Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 1.97
- Min. Bundle Dia. (in): 0.16
- Min. Tensile Strength: 22.94 kgf, 50 lbs
- Operating Temp.: -40 to 221F (-40 to 105C)
- Shape: Oval
- Stud Size: M6
- Weight per piece (lbs): 0.0066535510727396
Oval Shaped Stud Mount's special design allows for a 0.2" (5.5mm) lateral adjustment, allowing for any misalignment of the stud or incorrect position of the tie on the cables. Part number 156-01296 provides this functionality. The"soft push" mount allows it to be installed onto a weld stud without the use of any tools.
Head allows for a 0.2" lateral adjustment on stud during installation Quick and easy installation ideal for manufacturing environment.
The product is made from Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Polyamide 6.6 heat stabilized (PA66HS), PA66HS, PA66HIRHSUV and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 1.97"; Bundle Diameter Max. (Metric) 50.0mm; Bundle Diameter Min. (Imperial) 0.16"; Bundle Diameter Min. (Metric) 4.0mm; Mounting Hole Diameter D (Metric) M6 x 1; Stud Diameter (Metric) M6.
It is available in a length of 8.0", 203.2mm.
Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.
This product is suitable for applications in Automotive Industry;Electronics Industry;Truck Heavy Equipment;Rail Transportation Sector;Shipbuilding.
Cable Tie Closure plastic pawl Fixation Method Stud Mount Height H (Imperial) 1.02" Height H (Metric) 25.0mm Mounting Hole Shape Oval Releasable Closure No Weight per 1 Content Unit without Packaging 0.003018 kg.
