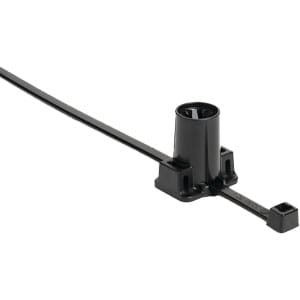

156-01429
- Color: Black
- Height (in): 0.98
- Length (in): 7.95
- Material: Polyamide 6.6 Heat Stabilized, Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 1.97
- Min. Bundle Dia. (in): 0.16
- Min. Tensile Strength: 22.94 kgf, 50 lbs
- Operating Temp.: -40 to 257F (-40 to 125C), -40 to 221F (-40 to 105C)
- Recommended Application Tool: 110-05005, 110-70083, 110-70084, 110-80000, 110-80001
- Shape: Round
- Stud Size (in): 0.31
- Stud Size (mm): 8.0 mm
- Thickness (in): 0.04724412
- Width (in): 0.181
Unique, two-piece design allows routing to be above, parallel or perpendicular to stud. Part number 156-01429 provides this functionality. This also enables up to three separate bundles to be fastened to the same stud. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Design gives quick and easy assembly by hand without the need for tools. Mount can be used in a wide variety of applications where 8mm weld studs or 8mm ISO bolts. Design provides low insertion force and high extraction force.
The product is made from Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Polyamide 6.6 heat stabilized (PA66HS), PA66HS, PA66HIRHSUV and is engineered for an operating temperature range of -40F to +257F (-40C to +125C);-40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 1.97"; Bundle Diameter Max. (Metric) 50.0mm; Bundle Diameter Min. (Imperial) 0.16"; Bundle Diameter Min. (Metric) 4.0mm; Stud Diameter (Imperial) 0.31"; Stud Diameter (Metric) 8.0mm.
It is available in a length of 7.95", 202.0mm.
Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.
Recommended cutting tools include 110-05005;110-70083;110-70084;110-80000;110-80001.
This product is suitable for applications in Automotive Industry;Electronics Industry;Truck Heavy Equipment;Rail Transportation Sector;Shipbuilding.
Cable Tie Closure plastic pawl Fixation Method Stud Mount Height H (Imperial) 0.98" Height H (Metric) 25.0mm Mounting Hole Shape Round Releasable Closure No Thickness T (Metric) 1.2mm Width W (Imperial) 0.181" Width W (Metric) 4.6mm.
Order today for reliable performance and quality.
