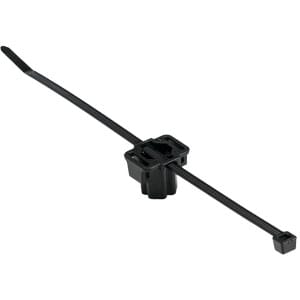

156-01547
- Color: Black
- Height (in): 0.74
- Hole Diameter (in): 0.20 x 0.03, 0.24 x 0.04, 0.20
- Length (in): 8
- Material: Polyamide 6.6 Heat Stabilized, Polyamide 6.6, High Impact Modified, Heat Stabilized
- Max. Bundle Dia. (in): 1.97
- Min. Bundle Dia. (in): 0.16
- Min. Tensile Strength: 22.64 kgf, 50 lbs
- Operating Temp.: -40 to 230F (-40 to 110C)
- Shape: Round
- Stud Size (in): 0.20, 0.24
- Stud Size (mm): 5.0 mm;6.0 mm
- Weight per piece (lbs): 0.0089044707696472
- Width (in): 0.181
- Width W2 (in): 0.79
Unique, two-piece design allows routing to be above, parallel or perpendicular to stud. Part number 156-01547 provides this functionality. This also enables up to three separate bundles to be fastened to the same stud. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Versatile design allows cable routing above. perpendicular or parallel to stud. Can mount up to three bundles simultaneously. making efficient use of a single mounting point. Four-pawl. three-tooth design delivers outstanding stud retention to keep bundles secure.
The product is made from Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS), Polyamide 6.6 heat stabilized (PA66HS), PA66HS, PA66HIRHS and is engineered for an operating temperature range of -40F to +230F (-40C to +110C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 1.97"; Bundle Diameter Max. (Metric) 50.0mm; Bundle Diameter Min. (Imperial) 0.16"; Bundle Diameter Min. (Metric) 4.0mm; Mounting Hole Diameter D (Imperial) 0.20 x 0.03"; 0.24 x 0.04"; 0.20"; Mounting Hole Diameter D (Metric) M5 x 0.8;M6 x 1;T5; Mounting Hole Diameter D Max. (Imperial) 0.24"; Mounting Hole Diameter D Max. (Metric) 6.0mm; Mounting Hole Diameter D Min. (Imperial) 0.2"; Mounting Hole Diameter D Min. (Metric) 5.0mm; Stud Diameter (Imperial) 0.20", 0.24"; Stud Diameter (Metric) 5.0mm;6.0mm.
It is available in a length of 8.0", 202.0mm.
Tensile strength is rated at 50 lbs, 22.64 kgf, 222 N.
This product is suitable for applications in Automotive Industry;Electronics Industry;Truck Heavy Equipment;Rail Transportation Sector;Shipbuilding.
Cable Tie Closure plastic pawl Fixation Method Stud Mount Height H (Imperial) 0.74" Height H (Metric) 18.75mm Mounting Hole Shape Round Releasable Closure No Weight per 1 Content Unit without Packaging 0.004039 kg Width W (Imperial) 0.181" Width W (Metric) 4.6mm Width W2 (Imperial) 0.79" Width W2 (Metric) 20.05mm.
