- Color: Black
- Depth (in): 0.39
- Height (in): 0.92
- Length (in): 0.59
- Length L2 (in): 0.61
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 0.39
- Max. Diameter: 1.97
- Min. Bundle Dia. (in): 0.31
- Min. Diameter: 0.08
- Min. Tensile Strength: 22.94 kgf, 50 lbs
- Nominal Bundle Diameter (in): 0.35
- Operating Temp.: -40 to 221F (-40 to 105C)
- Toothing (Serration): Inside Serrated

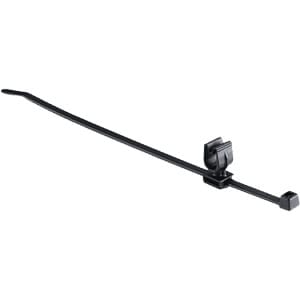

The MOC with Saddle to T50R Tie has a two-piece design that keeps two routings secured together while providing a fixed orientation for each bundle. Part number 156-01661 provides this functionality. The bi-directional saddle design allows the bundles to be coupled parallel or perpendicular to one another. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness.
Patented retention design on clip features inverted retaining legs. narrow opening and circular retainer to prevent inadvertent disengagement. Controlled flex and angled entry promote easy installation. Fixed connector controls routing orientation. Cable tie accommodates wide range of secondary bundle sizes.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 0.39"; Bundle Diameter Max. (Metric) 10.0mm; Bundle Diameter Min. (Imperial) 0.31"; Bundle Diameter Min. (Metric) 8.0mm; Cable Diameter Max. (Imperial) 1.97"; Cable Diameter Max. (Metric) 50.0mm; Cable Diameter Min. (Imperial) 0.08"; Cable Diameter Min. (Metric) 2.0mm; Nominal Bundle Diameter ND (imperial) 0.35"; Nominal Bundle Diameter ND (metric) 9.0mm.
It is available in a length of 0.59", 15.0mm, 0.61", 15.4mm.
Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.
Cable Tie Closure plastic pawl Depth D (Imperial) 0.39" Depth D (Metric) 10.0mm Fixation Method Omega Clip Height H (Imperial) 0.92" Height H (Metric) 23.4mm Releasable Closure No Toothing (Serration) Inside Serrated Variant Inside Serrated.
