- Color: Black
- Depth (in): 0.47
- Height (in): 1.31
- Length (in): 8.3
- Length L2 (in): 0.91
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 0.75
- Max. Diameter: 1.97
- Min. Bundle Dia. (in): 0.59
- Min. Diameter: 0.08
- Min. Tensile Strength: 22.94 kgf, 50 lbs
- Nominal Bundle Diameter (in): 0.59 - 0.75
- Operating Temp.: -40 to 221F (-40 to 105C)
- Width (in): 0.47

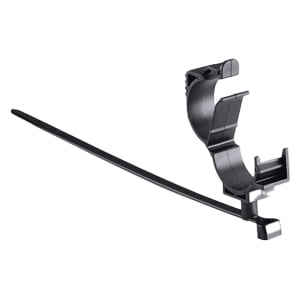

HellermannTyton's 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. Part number 156-01690 provides this functionality. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
Bundle can rotate to any orientation. allowing routing in any direction regardless of mounting point. Clip is reusable. making relocation or adjustments simple. All-in-one bundling and mounting solution reduces costs.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS), PA66HIRHS, PA66HIRHS and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Attaches to Diameter (Imperial) 0.59 - 0.75"; Attaches to Diameter (Metric) 15.0 - 19.0mm; Bundle Diameter Max. (Imperial) 0.75"; Bundle Diameter Max. (Metric) 19.0mm; Bundle Diameter Min. (Imperial) 0.59"; Bundle Diameter Min. (Metric) 15.0mm; Cable Diameter Max. (Imperial) 1.97"; Cable Diameter Max. (Metric) 50.0mm; Cable Diameter Min. (Imperial) 0.08"; Cable Diameter Min. (Metric) 2.0mm; Nominal Bundle Diameter ND (imperial) 0.59" - 0.75"; Nominal Bundle Diameter ND (metric) 15.0mm - 19.0mm.
It is available in a length of 8.3", 210.0mm, 0.91", 23.0mm.
Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.
This product is suitable for applications in Automotive Industry.
Depth D (Imperial) 0.47" Depth D (Metric) 12.0mm Fixation Method Omega Clip Height H (Imperial) 1.31" Height H (Metric) 33.4mm Width W (Imperial) 0.47" Width W (Metric) 12.0mm.
