- Color: Black
- Depth (in): 0.47
- Height (in): 1.58
- Length (in): 0.9
- Length L2 (in): 0.76
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 0.72
- Max. Diameter: 1.97
- Min. Bundle Dia. (in): 0.55
- Min. Diameter: 0.08
- Min. Tensile Strength: 22.94 kgf, 50 lbs
- Nominal Bundle Diameter (in): 0.63
- Operating Temp.: -40 to 221F (-40 to 105C)
- Weight per piece (lbs): 0.0063934056033614

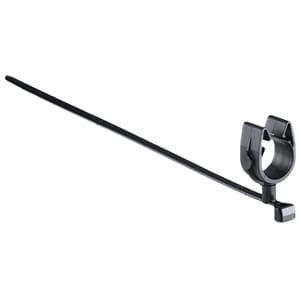

The MOC 180 to Swivel Tie is a rotatable routing clip coupled to a cable tie that keeps two routings secured and separated. Part number 156-01751 provides this functionality. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness. The clip's orientation allows the second routing to be assembled in the direction of the first routing. The swivel coupler allows the two routings to rotate independently of each other.
Patented retention design on clip features inverted retaining legs. narrow opening and circular retainer to prevent inadvertent disengagement. Controlled flex and angled entry promote easy installation. Independent rotation allows for adjustable routing orientation. Cable tie accommodates wide range of secondary bundle sizes.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 0.72"; Bundle Diameter Max. (Metric) 18.3mm; Bundle Diameter Min. (Imperial) 0.55"; Bundle Diameter Min. (Metric) 14.0mm; Cable Diameter Max. (Imperial) 1.97"; Cable Diameter Max. (Metric) 50.0mm; Cable Diameter Min. (Imperial) 0.08"; Cable Diameter Min. (Metric) 2.0mm; Nominal Bundle Diameter ND (imperial) 0.63"; Nominal Bundle Diameter ND (metric) 16.0mm.
It is available in a length of 0.90", 22.9mm, 0.76", 19.3mm.
Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.
This product is suitable for applications in Automotive Industry.
Depth D (Imperial) 0.47" Depth D (Metric) 12.0mm Fixation Method Omega Clip Height H (Imperial) 1.58" Height H (Metric) 40.2mm Weight per 1 Content Unit without Packaging 0.0029 kg.
