156-01839
- Color: Black
- Depth (in): 0.47
- Height (in): 0.93
- Height H2 (in): 0.87
- Length (in): 1.7
- Length L2 (in): 0.96
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 0.54
- Max. Bundle Dia. 2 (in): 0.35
- Min. Bundle Dia. (in): 0.41
- Min. Bundle Dia. 2 (in): 0.2
- Nominal Bundle Diameter (in): 0.47
- Nominal Bundle Diameter 2 (in): 0.20 - 0.35
- Operating Temp.: -40 to 221F (-40 to 105C)

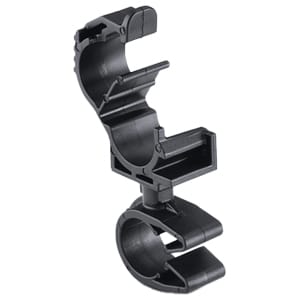

The MOC to LOC is a rotatable dual routing clip and clamp combination that keeps two routings secured and separated. Part number 156-01839 provides this functionality. A swivel coupler allows them to rotate independently of each other.
Patented retention design of clip features inverted retaining legs. narrow opening and circular retainer to prevent inadvertent disengagement. Clip and clamp both offer easy bundle installation. Independent rotation allows for adjustable routing orientation. Locking clamp dynamically fits a range of bundle sizes.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter 2 Max. (Imperial) 0.35"; Bundle Diameter 2 Max. (Metric) 9.0mm; Bundle Diameter 2 Min. (Imperial) 0.20"; Bundle Diameter 2 Min. (Metric) 5.0mm; Bundle Diameter Max. (Imperial) 0.54"; Bundle Diameter Max. (Metric) 13.8mm; Bundle Diameter Min. (Imperial) 0.41"; Bundle Diameter Min. (Metric) 10.5mm; Nominal Bundle Diameter ND (imperial) 0.47"; Nominal Bundle Diameter ND (metric) 12.0mm; Nominal Bundle Diameter ND2 (imperial) 0.20" - 0.35"; Nominal Bundle Diameter ND2 (metric) 5.0mm - 9.0mm.
It is available in a length of 1.70", 43.20mm, 0.96", 24.4mm.
Depth D (Imperial) 0.47" Depth D (Metric) 12.0mm Height H (Imperial) 0.93" Height H (Metric) 23.6mm Height H2 (Imperial) 0.87" Height H2 (Metric) 22.10mm Variant Clip to Clamp.
