156-01929

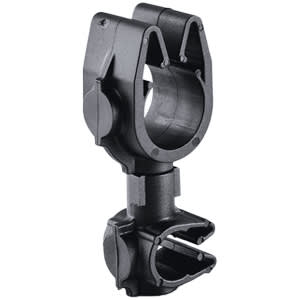

The MOC to MOC 180 is a rotatable dual routing clip that keeps two routings secured and separated. Part number 156-01929 provides this functionality. One clip is oriented 90 degrees from the other to provide alternative access for bundle attachment. A swivel coupler allows them to rotate independently of each other.

Patented retention design features inverted retaining legs. narrow opening and circular retainer to prevent inadvertent disengagement. Controlled flex and angled entry promote easy installation. Independent rotation allows for adjustable routing orientation.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter 2 Max. (Imperial) 0.45"; Bundle Diameter 2 Max. (Metric) 11.5mm; Bundle Diameter 2 Min. (Imperial) 0.37"; Bundle Diameter 2 Min. (Metric) 9.5mm; Bundle Diameter Max. (Imperial) 0.22"; Bundle Diameter Max. (Metric) 5.5mm; Bundle Diameter Min. (Imperial) 0.16"; Bundle Diameter Min. (Metric) 4.0mm; Nominal Bundle Diameter ND (imperial) 0.20"; Nominal Bundle Diameter ND (metric) 5.0mm; Nominal Bundle Diameter ND2 (imperial) 0.39"; Nominal Bundle Diameter ND2 (metric) 10.0mm.

It is available in a length of 1.35", 34.37mm, 0.72", 18.4mm.

Depth D (Imperial) 0.39" Depth D (Metric) 10.0mm Height H (Imperial) 0.67" Height H (Metric) 16.9mm Variant Clip to Clip Transverse.
