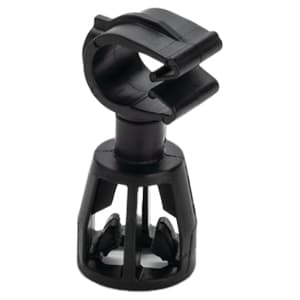

The MOC with stud mount features HellermannTyton's unique retention clip with a best-in-class stud mount to secure to a 5mm or 6mm stud or bolt. Part number 156-02878 provides this functionality. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point.

MOC stud mount secures bundles above a bolt or stud. Patented retention design features inverted retaining legs. narrow opening and circular retainer to prevent inadvertent disengagement. Controlled flex and angled entry promote easy installation. Independent rotation allows for adjustable routing orientation. High-performance stud mount design allows for easy installation and delivers outstanding stud retention to keep bundles secure.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +230F (-40C to +110C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 0.39"; Bundle Diameter Max. (Metric) 10.0mm; Bundle Diameter Min. (Imperial) 0.31"; Bundle Diameter Min. (Metric) 8.0mm; Nominal Bundle Diameter ND (imperial) 0.35"; Nominal Bundle Diameter ND (metric) 9.0mm; Nominal Diameter (Metric) 9.0mm; Stud Diameter (Imperial) 0.20";0.24"; Stud Diameter (Metric) 5.0mm;6.0mm.

It is available in a length of 0.68", 17.2mm, 0", 0mm.

Depth D (Imperial) 0.59" Depth D (Metric) 15.0mm Fixation Method Stud Mount Height H (Imperial) 1.46" Height H (Metric) 37.0mm Height H2 (Imperial) 1.14" Height H2 (Metric) 29.0mm.
