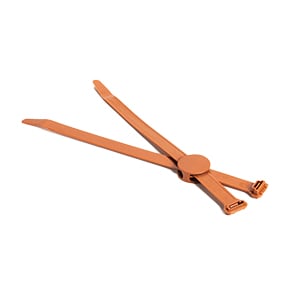

Couplers simplify connecting two cable ties for routing and separating bundles. Part number 156-03013 provides this functionality. Designed to allow up to 90 degrees of rotation, these assemblies are ideal for applications in which the bundle, pipe or hose requires slight movement in relation to the fastening point. Manufactured using PA46 high-heat material.

Three-piece wide strap tie and coupler assembly bundles and separates two routings at any angle from parallel to 90 degrees from each other. Wide strap ties minimize pinching of soft hoses and convoluted tubing. while the coupler protects routings from friction and abrasion. Space-saving coupler means more room for routings.

The product is made from Polyamide 4.6 (PA46) and is engineered for an operating temperature range of -40F to +266F (-40C to +130C) and is supplied in Brown (BN) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.

Diameter specifications include Bundle Diameter Max. (Imperial) 2.01"; Bundle Diameter Max. (Metric) 51.0mm; Bundle Diameter Min. (Imperial) 0.59"; Bundle Diameter Min. (Metric) 15.0mm.

It is available in a length of 9.1", 231.0mm.

Tensile strength is rated at 120 lbs, 535 N.

Cable Tie Closure plastic pawl For Cable Ties T120 Height H (Imperial) 0.43" Height H (Metric) 10.86mm Toothing (Serration) Inside Serrated Variant Inside Serrated Width W (Imperial) 0.5" Width W (Metric) 12.7mm.

Order today for reliable performance and quality.
