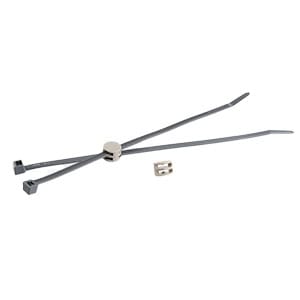

The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. Part number 156-04004 provides this functionality. This special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.

Pre-assembled 2-piece fixing tie with coupler Cable tie head can be moved after bundling Easy addition of cables after assembly For parallel routing of bundles that can be twisted 90 even after installation.

The product is made from Polyamide 4.6 (PA46), PA46, PA46 and is engineered for an operating temperature range of -40F to +266F (-40C to +130C) and is supplied in Gray (GY) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.

Diameter specifications include Bundle Diameter 1st Hole Max. (Imperial) 3.937"; Bundle Diameter 1st Hole Max. (Metric) 100.0mm; Bundle Diameter 2nd Hole Max. (Imperial) 3.937"; Bundle Diameter 2nd Hole Max. (Metric) 100.0mm; Bundle Diameter Max. (Imperial) 4.13"; Bundle Diameter Max. (Metric) 105.0mm; Bundle Diameter Min. (Imperial) 0.39"; Bundle Diameter Min. (Metric) 10.0mm.

It is available in a length of 14.96", 390.0mm.

Tensile strength is rated at 120 lbs, 54.56 kgf, 535 N.

Recommended cutting tools include 110-05005; 110-80000; 110-80001; 110-80003; 110-80004.

This product is suitable for applications in Automotive Industry.

Cable Tie Closure plastic pawl Cable Tie Width Max. (Imperial) 0.3" For Cable Ties T120 Height H (Imperial) 0.59" Height H (Metric) 14.9mm Toothing (Serration) Inside Serrated Variant Inside Serrated Width W (Imperial) 0.30" Width W (Metric) 7.6mm.

Order today for reliable performance and quality.
