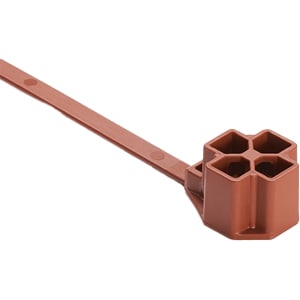

157-00295
- Color: Brown
- Height (in): 0.7
- Hole Diameter (in): 0.47 x 0.07
- Length (in): 8.6
- Material: Polyamide 4.6
- Max. Bundle Dia. (in): 1.97
- Min. Bundle Dia. (in): 0.14
- Min. Tensile Strength: 36.20 kgf, 80 lbs
- Operating Temp.: -40 to 266F (-40 to 130C)
- Shape: Round
- Stud Size (in): 0.47
- Stud Size (mm): 12.0 mm
- Toothing (Serration): Outside Serrated
- Weight per piece (lbs): 0.0095019235001682
- Width (in): 0.93
Stud Mount Ties offer outstanding stud retention. Part number 157-00295 provides this functionality. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Covers top of stud for protection from stud end. Four-pawl. three-tooth design delivers outstanding stud retention to keep bundles secure. PA46 material option allows use in high-heat applications.
The product is made from Polyamide 4.6 (PA46) and is engineered for an operating temperature range of -40F to +266F (-40C to +130C) and is supplied in Brown (BN) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Bundle Diameter Max. (Imperial) 1.97"; Bundle Diameter Max. (Metric) 50.0mm; Bundle Diameter Min. (Imperial) 0.14"; Bundle Diameter Min. (Metric) 3.5mm; Mounting Hole Diameter D (Imperial) 0.47 x 0.07"; Mounting Hole Diameter D (Metric) M12 x 1.75; Stud Diameter (Imperial) 0.47"; Stud Diameter (Metric) 12.0mm.
It is available in a length of 8.6", 218.0mm.
Tensile strength is rated at 80 lbs, 36.20 kgf, 355 N.
This product is suitable for applications in Automotive Industry.
Cable Tie Closure plastic pawl Fixation Method Stud Mount Height H (Imperial) 0.70" Height H (Metric) 17.0mm Mounting Hole Shape Round Releasable Closure No Toothing (Serration) Outside Serrated Weight per 1 Content Unit without Packaging 0.00431 kg Width W (Imperial) 0.93" Width W (Metric) 23.75mm.
