157-00426
- Color: Black
- Diameter (in): 0.3
- Height (in): 0.05
- Hole Diameter (in): 0.24 - 0.28, 0.25
- Length (in): 9.1
- Length L2 (in): 0.5
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 1.97
- Min. Bundle Dia. (in): 0.08
- Min. Tensile Strength: 22.94 kgf, 50 lbs
- Operating Temp.: -40 to 221F (-40 to 105C)
- Panel Thickness (in): 0.02 - 0.26
- Recommended Application Tool: 110-05005, 110-70083, 110-70084, 110-80000, 110-80001, 110-80003
- Shape: Round
- Width (in): 0.19

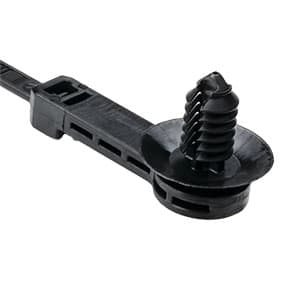

Offset cable ties route and position bundles away from a mounting hole. Part number 157-00426 provides this functionality. Rigid offset bar eliminates potential bending of wire or cables once installed. Multiple offset distances and fir tree sizes cover the majority of industry offset applications. The tie strap™s outside serration design provides a smooth surface to protect soft bundles. HellermannTyton's one-piece mounting ties offer a complete solution by both bundling and mounting. Their ideal combination of high-specification materials and superior design suit the needs of complex applications.
Offset design allows bundles to sit off of mounting points to avoid friction against surrounding areas Fir tree gives 3 to 1 extraction versus insertion force making them strong and easy to install Friction tab inside of fir tree allows tie to sit in mount without falling out prior to installation.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 1.97"; Bundle Diameter Max. (Metric) 50.0mm; Bundle Diameter Min. (Imperial) 0.08"; Bundle Diameter Min. (Metric) 2.0mm; Diameter D (Imperial) 0.30"; Diameter D (Metric) 7.5mm; Disc Diameter (Imperial) 0.75"; Disc Diameter (Metric) 19.0mm; Mounting Hole Diameter D (Imperial) 0.24 - 0.28" 0.25 (hexagonal)"; Mounting Hole Diameter D (Metric) 6.1 - 7.0mm; 6.35mm (hexagonal); Mounting Hole Diameter D Max. (Imperial) 0.28"; Mounting Hole Diameter D Max. (Metric) 7.0mm; Mounting Hole Diameter D Min. (Imperial) 0.24"; Mounting Hole Diameter D Min. (Metric) 6.1mm.
It is available in a length of 9.1", 230.0mm, 0.50", 12.7mm.
Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.
Recommended cutting tools include 110-05005; 110-70083; 110-70084; 110-80000; 110-80001; 110-80003.
This product is suitable for applications in Automotive Industry.
Fixation Method Fir tree for round holes Height H (Imperial) 0.05" Height H (Metric) 1.35mm Mounting Hole Shape Round Offset Length (Imperial) 0.98" Offset Length (Metric) 25.0mm Panel Thickness (Imperial) 0.02 - 0.26" Panel Thickness (Metric) 0.6 - 6.65mm Panel Thickness Max. (Imperial) 0.26" Panel Thickness Max. (Metric) 6.65mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.6mm Releasable Closure No Width W (Imperial) 0.19" Width W (Metric) 4.7mm.
Order today for reliable performance and quality.
