166-11813
- Color: Black
- Length (ft): 82 ft
- Material: Polyamide 6
- Min. Bend Radius: 9.45
- Nom. I.D. (in): 1.7
- Nom. O.D. (in): 2.13
- Operating Temp.: -40 to 248F (-40 to 120C)
- Outside Diameter (in): 2.15
- Pitch Type: Coarse

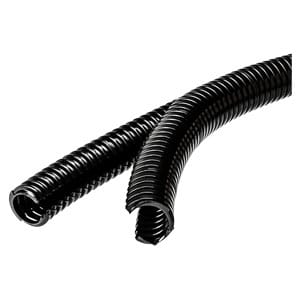

A standard weight corrugated conduit with two slit openings that eases installation and maintenance of wire and cable bundles. Part number 166-11813 provides this functionality. The interlocking construction is excellent for retrofitting projects. PA6 material is highly resistant to solvents and oils, and offers UV and abrasion resistance.
Double slit opening offers easy access during installation and maintenance. Material is easy to use and cut; reduces installation time and labor costs. Flexible. abrasion resistant and durable for a variety of applications. Good impact strength; recovers quickly if crushed. UV resistant; suitable for use in outdoor applications. Offered in fine or course corrugated pitch.
The product is made from Polyamide 6 (PA6) and is engineered for an operating temperature range of -40F to +248F (-40C to +120C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Inner Diameter ID (Imperial) 1.70"; Inner Diameter ID (metric) 43mm; Nominal Diameter (Imperial) 2.13"; Nominal Diameter (Metric) 54mm; Outside Diameter OD (imperial) 2.15"; Outside Diameter OD (metric) 54.5mm.
It is available in a length of 82.0ft, 25 m, with a trade size of 1-1/2".
This product is suitable for applications in Electronics Industry; Solar Energy Sector.
Inside Bend Radius (Imperial) 9.45" Inside Bend Radius (Metric) 240mm Pitch Type C (Coarse) Self extinguishing (Yes/No) Yes.
Order today for reliable performance and quality.
