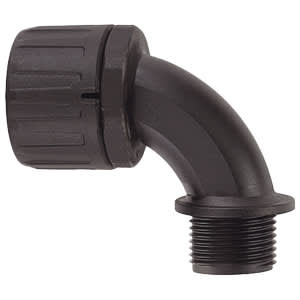

HelaGuard Non-Metallic 90-Degree Elbow fitting features a snap-on design that provides a quick, secure connection. Part number 166-90101 provides this functionality. Constructed of a very durable nylon material with a high resistance to salts, oils, weak acids and solvents. Designed for easy removal with a small screwdriver. IP66 ingress protection rated fittings.

External NPT thread provides a secure connection. Snap-on construction reduces installation time and costs by eliminating the need to thread fittings onto conduits. Elbow features a smooth. swept bore to ease cable installation. All-around"teeth" attach firmly to conduit and deliver a high extraction force. Durable nylon material has high resistance to salts. oils. weak acids and solvents. IP66 fitting has one-piece construction.

The product is made from Polyamide 6.6 (PA66), Polyamide (PA) and is engineered for an operating temperature range of -58F to +275F (-50C to +135C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bore Diameter (Imperial) 1.28"; Bore Diameter (Metric) 32.5mm; Clearance Hole Diameter (Imperial) 1.984"; Clearance Hole Diameter (Metric) 50.39mm; Nominal Diameter (Imperial) 1.25"; Nominal Diameter (Metric) 42mm; Outside Diameter OD (imperial) 2.48"; Outside Diameter OD (metric) 63mm.

It is available in a length of 3.86", 98.04mm, with a trade size of 1-1/4".

This product is suitable for applications in Electronics Industry.

Connection Type Snap-connection Swivel Thread (Y/N) No Thread Length (Imperial) 0.63" Thread Length (metric) 16mm Thread size (imperial) 1-1/4" Thread Type NPT Variant 90 Elbow.
