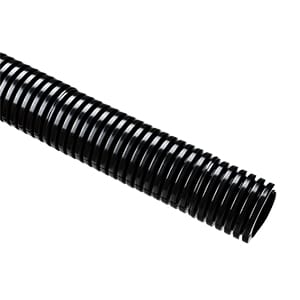

A standard weight corrugated conduit made of PA6 nylon that offers flexible abrasion protection for wire and cable bundles. Part number 166-90190 provides this functionality. Easy to cut and use, the material is highly resistant to solvents and oils. Combine with HelaGuard non-metallic fittings for IP66 rating or greater protection against water, wind and dirt.

Material is easy to use and cut; reduces installation time and labor costs. Flexible. abrasion resistant and durable for a variety of applications. Good impact strength; recovers quickly if crushed. UV resistant; suitable for use in outdoor applications. Offered in fine or course corrugated pitch.

The product is made from Polyamide 6 (PA6) and is engineered for an operating temperature range of -40F to +248F (-40C to +120C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.

Diameter specifications include Inner Diameter ID (Imperial) 0.47"; Inner Diameter ID (metric) 11.8mm; Nominal Diameter (Imperial) 0.38"; Nominal Diameter (Metric) 16mm; Outside Diameter OD (imperial) 0.63"; Outside Diameter OD (metric) 15.8mm.

It is available in a length of 100.0ft, 30.5 m, with a trade size of 3/8".

This product is suitable for applications in Electronics Industry.

Compression Strength (kg/100mm) 60 lbs Inside Bend Radius (Imperial) 1.38" Inside Bend Radius (Metric) 35mm Pitch Type F (Fine).

Order today for reliable performance and quality.
