166-90193
- Color: Black
- Compression Strength (kg/100mm): 90 lbs
- Length (ft): 50 ft
- Material: Polyamide 6
- Min. Bend Radius: 2.36
- Nom. I.D. (in): 1.11
- Nom. O.D. (in): 1
- Operating Temp.: -40 to 248F (-40 to 120C)
- Outside Diameter (in): 1.36
- Pitch Type: Coarse

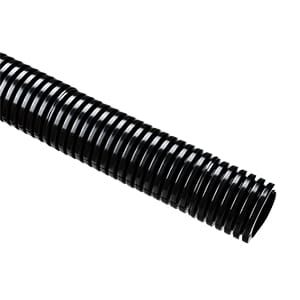

A standard weight corrugated conduit made of PA6 nylon that offers flexible abrasion protection for wire and cable bundles. Part number 166-90193 provides this functionality. Easy to cut and use, the material is highly resistant to solvents and oils. Combine with HelaGuard non-metallic fittings for IP66 rating or greater protection against water, wind and dirt.
Material is easy to use and cut; reduces installation time and labor costs. Flexible. abrasion resistant and durable for a variety of applications. Good impact strength; recovers quickly if crushed. UV resistant; suitable for use in outdoor applications. Offered in fine or course corrugated pitch.
The product is made from Polyamide 6 (PA6) and is engineered for an operating temperature range of -40F to +248F (-40C to +120C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Inner Diameter ID (Imperial) 1.11"; Inner Diameter ID (metric) 28.1mm; Nominal Diameter (Imperial) 1"; Nominal Diameter (Metric) 34mm; Outside Diameter OD (imperial) 1.36"; Outside Diameter OD (metric) 34.5mm.
It is available in a length of 50.0ft, 15.2 m, with a trade size of 1".
This product is suitable for applications in Electronics Industry.
Compression Strength (kg/100mm) 90 lbs Inside Bend Radius (Imperial) 2.36" Inside Bend Radius (Metric) 60mm Pitch Type C (Coarse).
