166-90197
- Color: Black
- Compression Strength (kg/100mm): 60 lbs
- Length (ft): 100 ft
- Material: Polyamide 6
- Min. Bend Radius: 1.58
- Nom. I.D. (in): 0.67
- Nom. O.D. (in): 0.5
- Operating Temp.: -40 to 248F (-40 to 120C)
- Outside Diameter (in): 0.84
- Pitch Type: Fine

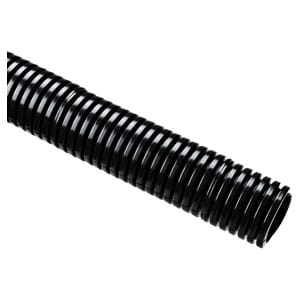

Lightweight nylon corrugated conduit provides high flexibility and good mechanical protection of wire and cable bundles, especially useful in smaller bend radius tight-fit applications. Part number 166-90197 provides this functionality. PA6 material offers high resistance to oils and solvents, along with good abrasion protection. Combine with HelaGuard non-metallic fittings for IP66 rating or greater protection against water, wind and dirt.
Lightweight and highly flexible for use in tight bend and fit applications. Easy to use and cut; reduces installation time and labor costs. Good abrasion resistance and impact strength; recovers quickly if crushed. Offered in fine or course corrugated pitch.
The product is made from Polyamide 6 (PA6) and is engineered for an operating temperature range of -40F to +248F (-40C to +120C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Inner Diameter ID (Imperial) 0.67"; Inner Diameter ID (metric) 16.7mm; Nominal Diameter (Imperial) 0.5"; Nominal Diameter (Metric) 21mm; Outside Diameter OD (imperial) 0.84"; Outside Diameter OD (metric) 21.2mm.
It is available in a length of 100.0ft, 30.5 m, with a trade size of 1/2".
This product is suitable for applications in Electronics Industry.
Compression Strength (kg/100mm) 60 lbs Inside Bend Radius (Imperial) 1.58" Inside Bend Radius (Metric) 40mm Pitch Type F (Fine) Self extinguishing (Yes/No) Yes.
