- Color: Black
- Length (ft): 164 ft
- Material: Polyamide 6, Flame Retardant
- Min. Bend Radius: 4.73
- Nom. I.D. (in): 0.55
- Nom. O.D. (in): 0.5
- Operating Temp.: -40 to 248F (-40 to 120C)
- Outside Diameter (in): 0.84
- Pitch Type: Coarse

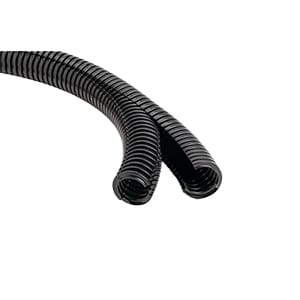

A low-fire-hazard, corrugated two-piece conduit, each of which is slit open to ease installation and maintenance of wire and cable bundles. Part number 166-90978 provides this functionality. The interlocking construction is excellent for retrofitting projects. PA6FR material is highly flame retardant, resistant to solvents and oils and offers excellent abrasion resistance. Combine with HelaGuard Non-Metallic Fittings for IP66 rating or greater protection against water, wind and dirt.
Overlapping conduit design increases mechanical protection and eliminates unintentional exposure of wires caused by motion. vibration or when routed around corners. Material is easy to use and cut; reduces installation time and labor costs. Good impact strength; recovers quickly if crushed.
The product is made from Polyamide 6, flame retardant (PA6FR) and is engineered for an operating temperature range of -40F to +248F (-40C to +120C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Inner Diameter ID (Imperial) 0.55"; Inner Diameter ID (metric) 13.9mm; Nominal Diameter (Imperial) 0.5"; Nominal Diameter (Metric) 21mm; Outside Diameter OD (imperial) 0.84"; Outside Diameter OD (metric) 21.2mm.
It is available in a length of 164.0ft, 50 m, supplied on reels of 164.0ft, 50.0 m.
This product is suitable for applications in Electronics Industry.
Inside Bend Radius (Imperial) 4.73" Inside Bend Radius (Metric) 120mm Pitch Type C (Coarse).
Order today for reliable performance and quality.
