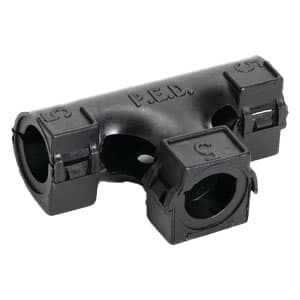

Convoluted Loom fittings are single piece hinged connectors that simply snap-on over slit and unslit loom tubing to secure wire branchouts or, connect different tubing diameters. Part number 167-00201 provides this functionality. The unique wrap around design makes installation easier and more efficient, while the unique junction points make easy branchouts that keep wires from sliding out of the tubing and eliminates need for secondary taping operation. The polypropylene material creates a sleek assembly and improves the appearance of the entire wiring assembly.

Living hinge allows harness serviceability and reduces assembly time. Internal ribs affix to exterior of tubing which prevents slipping during tension or movement. Snap-on connection makes installations quick and easy and increases efficiencies in harness assembly. Junction point outlets offer additional areas to branch off wires and prevents wires from sliding or accidental removal from tubing. Improves aesthics of assembled wire harness. No tools required to disassemble.

The product is made from Polypropylene (PP) and is engineered for an operating temperature range of -4F to +194F (-20C to +90C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.

Diameter specifications include Diameter D (Imperial) 0.50"; Diameter D (Metric) 12.7mm; Diameter D2 (Imperial) 0.50"; Diameter D2 (Metric) 12.7mm; Diameter D3 (Imperial) 0.50"; Diameter D3 (Metric) 12.7mm; Inner Diameter ID (Imperial) 0.50"; Inner Diameter ID (metric) 12.7mm; Outside Diameter D2 (imperial) 0.50"; Outside Diameter D2 (metric) 12.7mm.

Variant Fittings.
