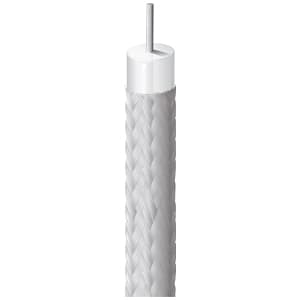

1673A

1673A
$0.00 / 100 FT
  • Approx LBS/MFT: 30
  • AWG Size: 19
  • Cond. Material: Silver-Plated Copper-Covered Steel
  • Conductor Stranding: solid
  • Dielectric (in): 0.116
  • Dielectric Material: TFE Teflon
  • Jacket Material: Unjacketed
  • Max. Temp: 105C
  • No. of Strands: 1
  • Nom. Cap. (pF/ft): 29.5
  • Nom. DCR of Cond.: 20.5O/M'
  • Nom. DCR of Shld.: 4.5O/M'
  • Nom. Dia. of Cond.: 0.036
  • Nom. Imp.: 50
  • Nom. O.D. (in): 0.1380
  • Shield: Composite Shield
  • Shield Coverage: 1
  • Shield Material: Copper/Tin
  • UL Style: 10245
  • Voltage: 30
