- Color: Black with Gray Stripe
- Diameter (in): 1.5
- Diameter 2 (in): 1.257
- Length (ft): 1800 ft
- Material: Polyamide 6
- Nom. I.D. (in): 1.257
- Nom. O.D. (in): 1.25
- Nom. Wall Thick. (in): 0.006
- Operating Temp.: -40 to 257F (-40 to 125C)
- Outside Diameter (in): 1.5

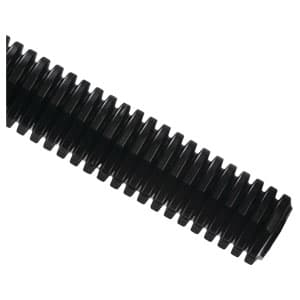

Convoluted tubing provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. Part number 169-60004 provides this functionality. It also can serve to protect valuable wiring circuits. HellermannTyton's convoluted tubing offers excellent protection against automotive fluids, vibration wear, water, snow, ice, and the effects of heat or cold on cables and wires. Available in standard, bulk, and dispenser box packaging. Material is slit.
Durable tubing provides protection of wire harness from friction. vibration. fraying and puncture. Tubing protects cables and wires against automotive fluids and vibration wear. Weather resistant material provides protection against water. snow. ice. and the effects of heat or cold. Nylon material is formulated to withstand high temperatures. Lateral slit allows fast and easy insertion of wires.
The product is made from Polyamide 6 (PA6) and is engineered for an operating temperature range of -40F to +257F (-40C to +125C) and is supplied in Black with Gray Stripe (BKSTGY) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Diameter D (Imperial) 1.50"; Diameter D (Metric) 38.10mm; Diameter D2 (Imperial) 1.257"; Diameter D2 (Metric) 31.93mm; Inner Diameter ID (Imperial) 1.257"; Inner Diameter ID (metric) 31.93mm; Nominal Diameter (Imperial) 1.25"; Nominal Diameter (Metric) 31.75mm; Outside Diameter D2 (imperial) 1.50"; Outside Diameter D2 (metric) 38.10mm; Outside Diameter OD (imperial) 1.50"; Outside Diameter OD (metric) 38.10mm, wall thickness 0.006", 0.152mm.
It is available in a length of 1800.0ft, 548.6 m, with a trade size of 1-1/4".
Variant Slit.
Order today for reliable performance and quality.
