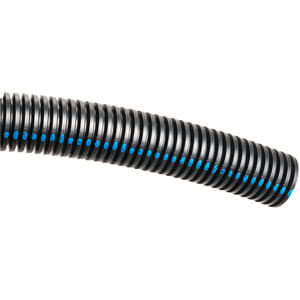

169-60103
- Color: Black with Blue Stripe
- Diameter (in): 0.4
- Diameter 2 (in): 0.276
- Length (ft): 3200 ft
- Material: Polypropylene, Flame Retardant
- Nom. I.D. (in): 0.266
- Nom. O.D. (in): 0.25
- Nom. Wall Thick. (in): 0.004
- Operating Temp.: -40 to 257F (-40 to 125C)
- Outside Diameter (in): 0.4
HellermannTyton's Convoluted Tubing, also known at Split Loom Tubing, provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. Part number 169-60103 provides this functionality. With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly. It can also serve to protect valuable hoses and cables. Convoluted tubing offer™s excellent protection against vibration wear, water, snow, ice and the effects of heat, cold and sunlight on cables and wires. The Polypropylene flame retardant material provides additional protection that is suitable for applications requiring a self-extinguishing material and complies with UL 94 V2 standards.
Split side is ideal for applications where braided tubing or spiral wrap may be difficult to install. Tubing provides full coverage where spiral wrap or other coverings may not be suitable. Tubing offers excellent protection against automotive fluids. vibration wear. water. snow. ice. and the effects of heat. cold. and sunlight on cables and wires. Excellent flame resistant properties with higher operating temperature range than PE tubings.
The product is made from Polypropylene, flame retardant (PPFR) and is engineered for an operating temperature range of -40F to +257F (-40C to +125C) and is supplied in Black with Blue Stripe (BKSTBL) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Diameter D (Imperial) 0.40"; Diameter D (Metric) 10.20mm; Diameter D2 (Imperial) 0.276"; Diameter D2 (Metric) 7.01mm; Inner Diameter ID (Imperial) 0.266"; Inner Diameter ID (metric) 6.76mm; Nominal Diameter (Imperial) 0.25"; Nominal Diameter (Metric) 6.35mm; Outside Diameter D2 (imperial) 0.400"; Outside Diameter D2 (metric) 10.20mm; Outside Diameter OD (imperial) 0.400"; Outside Diameter OD (metric) 10.20mm, wall thickness 0.004", 0.102mm.
It is available in a length of 3200.0ft, 975.4 m, with a trade size of 1/4".
Variant Slit.
