- Abrasion Resistance: High
- Color: Gray
- Diameter (in): 0.16
- Length (ft): 656 ft
- Material: Polyamide 6.6
- Max. Bundle Dia. (in): 0.24
- Melting Temperature: +491F (+255C)
- Min. Bundle Dia. (in): 0.12
- Nom. O.D. (in): 0.16
- Operating Temp.: -76 to 302F (-60 to 150C)
- Recommended Cutting Tools: Hot Knife
- Weight per piece (lbs): 0.015211896090757

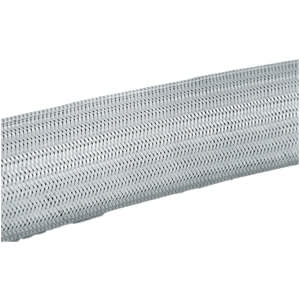

Helagaine Nylon Polyamide Expandable Braided Sleeving is a pliable yet durable sleeve that protects against cuts, abrasion and excessive wear caused by repetitive motion. Part number 170-20400 provides this functionality.
Nylon monofilament construction weave offers a tight braid that provides full coverage but will not rot or retain moisture. Material performs well in wet applications and where abiding substrate has a smooth surface.
The product is made from Polyamide 6.6 (PA66) and is engineered for an operating temperature range of -76F to +302F (-60C to +150C) and is supplied in Gray (GY) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Bundle Diameter Max. (Imperial) 0.24"; Bundle Diameter Max. (Metric) 6mm; Bundle Diameter Min. (Imperial) 0.12"; Bundle Diameter Min. (Metric) 3mm; Diameter D (Imperial) 0.16"; Diameter D (Metric) 4.1mm; Nominal Diameter (Imperial) 0.16"; Nominal Diameter (Metric) 4mm.
It is available in a length of 656.0ft, 200.0 m, supplied on reels of 656.0ft, 200.0 m.
It has a melting point of +491 F (+255 C).
Abrasion resistance is High.
Recommended cutting tools include Hot Knife.
This product is suitable for applications in Automotive Industry;Electronics Industry.
Weight per 1 Content Unit without Packaging 0.0069 kg.
