173-04000
- Color: Silver, Orange
- Diameter (in): 1.6
- Length (ft): 164 ft
- Material: Polyester, Tin-Plated Copper
- Max. Bundle Dia. (in): 1.97
- Min. Bundle Dia. (in): 1.18
- Nom. O.D. (in): 1.6
- Operating Temp.: -40 to 302F (-40 to 150C)
- Weight per piece (lbs): 0.26455471462185

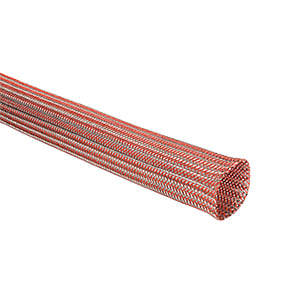

Special braided sleeving protects sensitive electronics from electromagnetic interference in hybrid and electric powered vehicles. Part number 173-04000 provides this functionality. It won™t rupture or kink, even when flexed at sharp angles. The sleeving has a 3:1 expansion ratio.
Excellent electromagnetic protection. Extremely flexible. expandable and easy to apply. No kinks or ruptures even when bent at sharp angles. Special copper alloy for enhanced protection against salt spray. Particularly suitable for applications with restricted space or requiring movement.
The product is made from Polyester (PET);Tin-plated copper (SNCU) and is engineered for an operating temperature range of -40F to +302F (-40C to +150C) and is supplied in Silver (SR);Orange (OG) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 1.97"; Bundle Diameter Max. (Metric) 50mm; Bundle Diameter Min. (Imperial) 1.18"; Bundle Diameter Min. (Metric) 30mm; Diameter D (Imperial) 1.6"; Diameter D (Metric) 40mm; Nominal Diameter (Imperial) 1.6"; Nominal Diameter (Metric) 40mm.
It is available in supplied on reels of 164.0ft, 50 m.
This product is suitable for applications in Automotive Industry.
Weight per 1 Content Unit without Packaging 0.12 kg.
