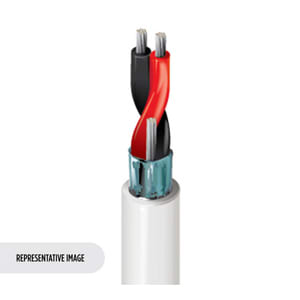

1801B
Part Number
1801B
Attributes
Approx LBS/MFT
12
AWG Size
24
Color Code Chart
Black, Red
Cond. Material
Tinned Copper
Conductor Stranding
7/32
Drain Wire
24 AWG Stranded Tinned Copper
Insul. Material
Foamed Fluorinated Ethylene Propylene (FFEP)
Jacket Material
Flamarrest
Max. Temp
75C
NEC Type
CMP
No. of Pairs
1
No. of Strands
7
Nom. Cap. (C-C)
12
Nom. Cap. (C-SC)
26
Nom. DCR of Cond.
23.7O/M'
Nom. DCR of Shld.
18.9O/M'
Nom. Imp.
110
Nom. O.D. of Cable (in)
0.165
Shield
Overall Foil Shield
Shield Coverage
100%
Shield Material
Beldfoil
Strand Size
32
Vel. of Prop.
78%
