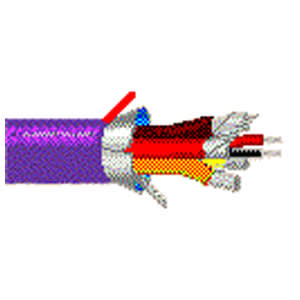

1806F - Instrumentation Cable (24 AWG, 12-Pair)

Belden 1806F is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.

This cable features 12 pairs of 24 AWG, 7-strand tinned copper conductors with individually foil shielded pairs and an overall Beldfoil shield. the cable uses Datalene insulation and a Polyvinylchloride (PVC) jacket, with 0.167-inch jacket thickness and insulation thickness of 0.07 inches. The cable is approved to NEC Type CMG standards. Approximate weight is 330 lbs/MFT with Chart 7 color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

How many pairs does Belden 1806F have?

Belden 1806F contains 12 individually foil shielded pairs.

What shielding does Belden 1806F use?

Belden 1806F has individual foil shields on each pair plus an overall Beldfoil shield.

What NEC type is Belden 1806F?

Belden 1806F is rated NEC Type CMG.
