181-00210
- Color: Intrinsic Blue
- Height (in): 3.07
- Hole Diameter (in): 4
- Length (ft): 6
- Material: Polyvinylchloride - Rigid Extrusion Grade
- Operating Temp.: 122F (50C)
- Width (in): 4
- Width W2 (in): 4
- Width W3 (in): 0.4
- Width W4 (in): 1
- Width W5 (in): 2.6
- Width W6 (in): 1.5

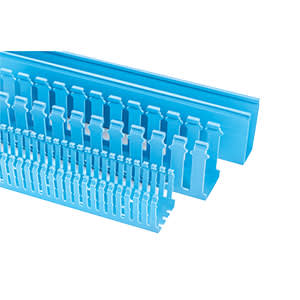

181-00210 — HellermannTyton Slotted Wall Wiring Duct
HellermannTyton Slotted Wall Wiring Duct, 4" x 3", Non-Adhesive, PVC, Intrinsic Blue, 120ft/Carton engineered for demanding identification needs in industrial environments. Manufactured from the same PVC material as standard Pro-Duct colors, HellermannTyton also offers an intrinsic blue color option. The intrinsic blue color indicates that the wiring contained in the duct runs to intrinsically safe components in the control panel. Pro-Duct slotted wall wiring duct features break-away fingers which provide additional access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a greater opening is required. The lower score line allows the sidewall to be smoothly cut for joints and Ts. Strong fingers prevent unwanted breaking. Fingers are easily deflected outward, allowing ready positioning of the wires within the slotted wall duct. Restricted opening design in the finger of the duct helps keep wires in place. Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection. Supplied with mounting holes to streamline installation. Optional covers enhance protection and appearance.
- Material: Polyvinylchloride - rigid extrusion grade (PVC)
- Operating Temperature: +122F (+50C)
- Length: 6.0 ft
- Length (metric): 1.83 m
- Width: 4.0 "
- Width (metric): 101.6 mm
- Color: Intrinsic Blue (IBU)
- Storage: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH
- Use Conditions: For Indoor Use Only
