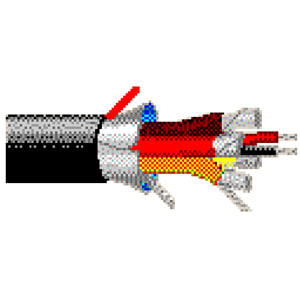

1820R - Instrumentation Cable (22 AWG, 300V)

Belden 1820R is a instrumentation cable designed for industrial instrumentation and control applications.

This cable features 20 conductors of 22 AWG, 7-strand tinned copper conductors with individually foil shielded pairs and an overall Beldfoil shield. Rated for 300V, the cable uses Polyolefin (PO) insulation and a Polyvinylchloride (PVC) jacket, with 0.133-inch jacket thickness and insulation thickness of 0.05 inches. The cable operates up to 60C and is approved to NEC Type CMR standards. Approximate weight is 442 lbs/MFT with Red/Black color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

What is the conductor size of Belden 1820R?

Belden 1820R features 22 AWG conductors.

What is the voltage rating of Belden 1820R?

This cable is rated for 300 volts.

What shielding does Belden 1820R use?

Belden 1820R has individual foil shields on each pair plus an overall Beldfoil shield.

What NEC type is Belden 1820R?

Belden 1820R is rated NEC Type CMR.
