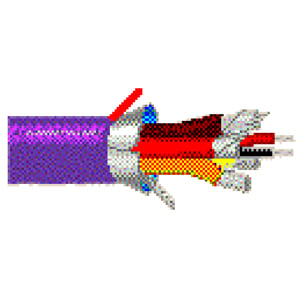

1854F - Instrumentation Cable (24 AWG, 32-Pair)
Belden 1854F is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.
This cable features 32 pairs of 24 AWG, 7-strand tinned copper conductors with individually foil shielded pairs and an overall Beldfoil shield. the cable uses Datalene insulation and a Polyvinylchloride (PVC) jacket, with 0.167-inch jacket thickness and insulation thickness of 0.07 inches. The cable is approved to NEC Type CMG standards. Approximate weight is 841 lbs/MFT with Chart 7 color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
How many pairs does Belden 1854F have?
Belden 1854F contains 32 individually foil shielded pairs.
What shielding does Belden 1854F use?
Belden 1854F has individual foil shields on each pair plus an overall Beldfoil shield.
What NEC type is Belden 1854F?
Belden 1854F is rated NEC Type CMG.
1854F
Part Number
1854F
Attributes
841
24
Chart 7
Tinned Copper
7/32
Datalene
Polyvinylchloride (PVC)
0.167
CMG
32
7
12
26
23.7O/M'
18.9O/M'
0.024
110 ±10
0.07
1.346
Individually Foil Shielded Pairs/Overall Foil Shield
100%
Beldfoil
32
76%
