2212C

A2212
$0.00 / 100 FT
  • AWG Size: 22
  • Cond. Material: Tinned Copper
  • Conductor Stranding: 7/30
  • CSA Type: CMG
  • Drain Wire: Stranded Tinned Copper Drain Wire
  • Insul. Material: Polyvinylchloride (PVC)
  • Jacket Material: Polyvinylchloride (PVC)
  • Jacket Thickness: 0.032
  • Max. Temp: 80C
  • Min. Temp: -20C
  • No. of Pairs: 2
  • No. of Strands: 7
  • Nom. Insul. Thick. (in): 0.010
  • Nom. O.D. (in): 0.2320
  • Shield: Overall Foil Shield
  • Shield Coverage: 100%, with 25% overlap, foil facing out
  • Shield Material: Aluminum/Polyester Foil
  • Strand Size: 30
  • UL Style: 2576/CM
  • Voltage: 300

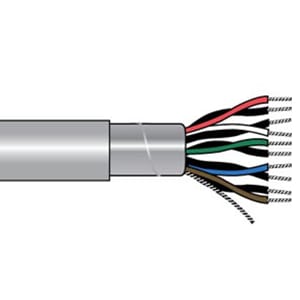

Alpha 2212C Communication and Control Cable - 22 Gauge

Our Alpha 2212C 22 gauge cable is part of our Communication and Control Cable line of Wire & Cable. Alpha 2212C cable is composed of a 7/30 stranded tinned copper conductor with an overall shield of aluminum/polyester foil, polyvinylchloride (PVC) insulation and jacket materials, and a stranded tinned copper drain wire. These cables are rated for a voltage of 150 volts and have a temperature range of -20°C to 80°C.
