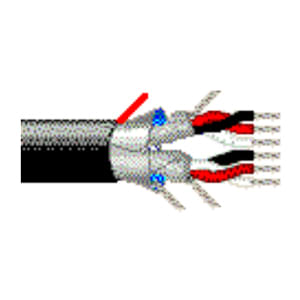

22690 - Instrumentation Cable (16 AWG, 12-Triad, 300V)

Belden 22690 is a instrumentation cable designed for industrial instrumentation and control applications.

This cable contains 12 triads of 16 AWG, 7-strand tinned copper conductors with individually foil shielded pairs and an overall Beldfoil/Polyester Isolation Tape/Beldfoil shield. Rated for 300V, the cable uses Polyvinylchloride (PVC) insulation and a Polyvinylchloride (PVC) jacket, with 0.08-inch jacket thickness and nominal outside diameter of 1.08 inches. The cable operates from -40C to 105C and is approved to CSA Type CIC standards. Approximate weight is 1524 lbs/MFT with Black/White/Red color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

What is the conductor configuration of Belden 22690?

Belden 22690 features 12 triads of 16 AWG conductors.

What is the voltage rating of Belden 22690?

This cable is rated for 300 volts.

What shielding does Belden 22690 use?

Belden 22690 has individual foil shields on each pair plus an overall Beldfoil/Polyester Isolation Tape/Beldfoil shield.

What is the temperature rating for Belden 22690?

Belden 22690 is rated for operation up to 105C.
