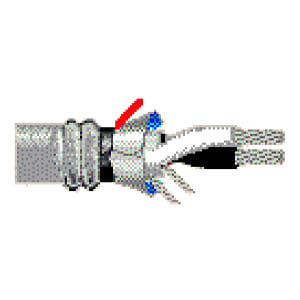

23501 - Instrumentation Cable (16 AWG, 300V)

Belden 23501 is a instrumentation cable designed for industrial instrumentation and control applications.

This single-pair cable features 16 AWG, 7-strand tinned copper conductors with individually foil shielded pairs and an overall Beldfoil/Polyester Isolation Tape/Beldfoil shield. Rated for 300V, the cable uses Polyvinylchloride (PVC) insulation and a Polyvinylchloride (PVC) jacket, with 0.62-inch jacket thickness and insulation thickness of 0.025 inches. The cable operates from -40C to 105C and is approved to CSA Type ACIC standards. Approximate weight is 175 lbs/MFT with Black/White color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

What is the conductor size of Belden 23501?

Belden 23501 features 16 AWG conductors.

What is the voltage rating of Belden 23501?

This cable is rated for 300 volts.

What shielding does Belden 23501 use?

Belden 23501 has individual foil shields on each pair plus an overall Beldfoil/Polyester Isolation Tape/Beldfoil shield.

What is the temperature rating for Belden 23501?

Belden 23501 is rated for operation up to 105C.
