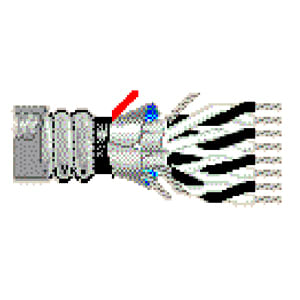

26546 - Instrumentation Cable (20 AWG, 50-Pair, 300V)

Belden 26546 is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.

This cable features 50 pairs of 20 AWG, 7-strand tinned copper conductors with individually foil shielded pairs and an overall Beldfoil/Polyester Isolation Tape/Beldfoil shield. Rated for 300V, the cable uses Polyvinylchloride (PVC) insulation and a Polyvinylchloride (PVC) jacket, with 1.75-inch jacket thickness and insulation thickness of 0.02 inches. The cable operates from -40C to 105C and is approved to CSA Type ACIC standards. Approximate weight is 2010 lbs/MFT with Black/White color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

How many pairs does Belden 26546 have?

Belden 26546 contains 50 individually foil shielded pairs.

What is the voltage rating of Belden 26546?

This cable is rated for 300 volts.

What shielding does Belden 26546 use?

Belden 26546 has individual foil shields on each pair plus an overall Beldfoil/Polyester Isolation Tape/Beldfoil shield.

What is the temperature rating for Belden 26546?

Belden 26546 is rated for operation up to 105C.
