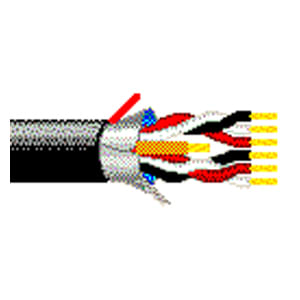

3052A - Power Limited Tray Cable (16 AWG, 16-Triad, 300V)

Belden 3052A is a power limited tray cable designed for industrial instrumentation and control applications.

This cable contains 16 triads of 16 AWG, 7-strand bare copper conductors with an overall Beldfoil shield. Rated for 300V, the cable uses Polyvinylchloride (PVC) insulation and a Polyvinylchloride (PVC) jacket, with nominal outside diameter of 1.032 inches. The cable is approved to NEC Type PLTC/ITC/CMG and CSA Type CMG FT4 standards. E1 color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

What is the conductor configuration of Belden 3052A?

Belden 3052A features 16 triads of 16 AWG conductors.

What is the voltage rating of Belden 3052A?

This cable is rated for 300 volts.

What shielding does Belden 3052A have?

Belden 3052A has an overall Beldfoil shield.

What NEC type is Belden 3052A?

Belden 3052A is rated NEC Type PLTC/ITC/CMG.
