3055A - Power Limited Tray Cable (16 AWG, 24-Triad, 300V)

Belden 3055A is a power limited tray cable designed for industrial instrumentation and control applications.

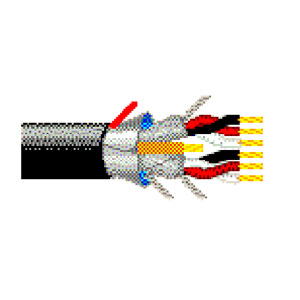

This cable contains 24 triads of 16 AWG, 7-strand bare copper conductors with individually foil shielded pairs and an overall Beldfoil shield. Rated for 300V, the cable uses Polyvinylchloride (PVC) insulation and a Polyvinylchloride (PVC) jacket, with nominal outside diameter of 1.32 inches. The cable is approved to NEC Type PLTC/ITC/CMG and CSA Type CMG FT4 standards. E1 color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

What is the conductor configuration of Belden 3055A?

Belden 3055A features 24 triads of 16 AWG conductors.

What is the voltage rating of Belden 3055A?

This cable is rated for 300 volts.

What shielding does Belden 3055A have?

Belden 3055A has individual foil shields on each pair plus an overall Beldfoil shield.

What NEC type is Belden 3055A?

Belden 3055A is rated NEC Type PLTC/ITC/CMG.
