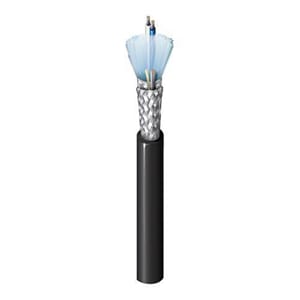

3106A
Part Number
3106A
Attributes
Approx LBS/MFT
51
AWG Size
22
Color Code Chart
White/Orange, Orange/White, Blue/White
Cond. Material
Tinned Copper
Conductor Stranding
7/30
Dielectric Material
Datalene
Jacket Material
UV-Resistant Polyvinylchloride (PVC)
NEC Type
CM/PLTC
No. of Pairs
1.5
No. of Strands
7
Nom. Cap. (C-C)
11.0
Nom. Cap. (C-SC)
20.9
Nom. DCR of Cond.
14.7O/M'
Nom. DCR of Shld.
2.8O/M'
Nom. Imp.
120
Nom. O.D. (in)
0.3000
Shield
Overall Braid and Foil Shield
Shield Coverage
100%/90%
Shield Material
Beldfoil/Tinned Copper Braid
Strand Size
30
Voltage
300
