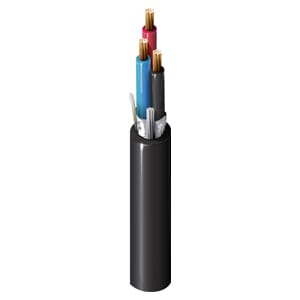

3118A - Tray Cable (16 AWG, 16-Triad, 600V)

Belden 3118A is a tray cable designed for industrial instrumentation and control applications.

This cable contains 16 triads of 16 AWG, 7-strand bare copper conductors with individually foil shielded pairs and an overall Beldfoil shield. Rated for 600V, the cable uses Polyvinylchloride (PVC)/Nylon insulation and a Polyvinylchloride (PVC) jacket, with nominal outside diameter of 1.234 inches. The cable is approved to NEC Type TC/NPLF and CSA Type FT4 standards. E1 color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

What is the conductor configuration of Belden 3118A?

Belden 3118A features 16 triads of 16 AWG conductors.

What is the voltage rating of Belden 3118A?

This cable is rated for 600 volts.

What shielding does Belden 3118A have?

Belden 3118A has individual foil shields on each pair plus an overall Beldfoil shield.

What NEC type is Belden 3118A?

Belden 3118A is rated NEC Type TC/NPLF.
