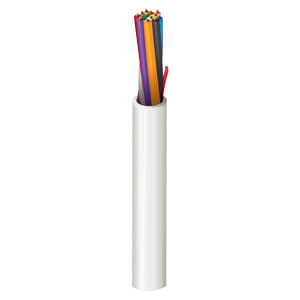

5309UE - Instrumentation Cable (18 AWG, 300V)

Belden 5309UE is a instrumentation cable designed for industrial instrumentation and control applications.

This cable features 12 conductors of 18 AWG, 7-strand bare copper conductors. Rated for 300V, the cable uses Polypropylene (PP) insulation and a Polyvinylchloride (PVC) jacket, with insulation thickness of 0.007 inches. The cable operates up to 75C and is approved to NEC Type CMR standards. Approximate weight is 85 lbs/MFT with Black/Red/White/Green/Brown/Blue/Orange/Yellow/Purple/Grey/Pink/Tan color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

What is the conductor size of Belden 5309UE?

Belden 5309UE features 18 AWG conductors.

What is the voltage rating of Belden 5309UE?

This cable is rated for 300 volts.

What NEC type is Belden 5309UE?

Belden 5309UE is rated NEC Type CMR.
