5562FE

5562FE
$0.00 /
  • Approx LBS/MFT: 28
  • AWG Size: 22
  • Color Code Chart: Black/Red, Black/White, Black/Green
  • Cond. Material: Bare Copper
  • Conductor Stranding: solid
  • Insul. Material: Polyvinylchloride (PVC)
  • Jacket Material: Polyvinylchloride (PVC)
  • Jacket Thickness: 0.015
  • Max. Temp: 75C
  • NEC Type: CMR
  • No. of Cond.: 3
  • No. of Strands: 1
  • Nom. Insul. Thick. (in): 0.01
  • Nom. O.D. of Cable (in): 0.212
  • Shield: Overall Foil Shield
  • Shield Coverage: 100%, foil facing out
  • Shield Material: Beldfoil
  • Voltage: 300

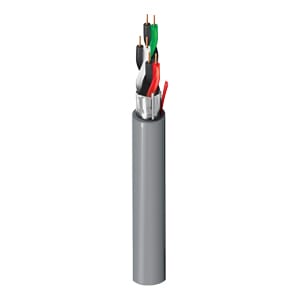

Belden 5562FE CMR Security and Alarm Cable - 22 Gauge 3 Conductor

Our Belden 5562FE 22 gauge cable is part of our Security and Alarm Cable line of Wire & Cable. Belden 5562FE is an NEC Type CMR Cable per NEC Article 800 and also holds a CEC CMG FT4 rating. These cables are composed of 3 solid bare copper conductors with an overall shield of beldfoil, and polyvinylchloride (PVC) insulation and jacket materials. The pairs in these cables are color-coded according to black/red, black/white, black/green with a grey jacket. Rated for up to 300 volts, these cables have a maximum temperature of 75° C and weigh approximately 28 LBS/MFT. Belden 5562FE is ripcord with sequential footage markings every 2 ft. Applications for 22 gauge Belden 5562FE include commercial use, security, intercom and PA, sound and audio systems, and power-limited controls.
