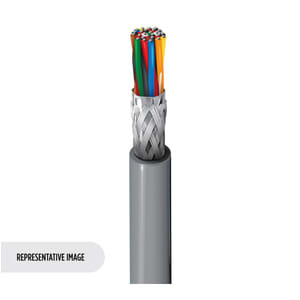

8115 - Instrumentation Cable (24 AWG, 15-Pair, 30V)
Belden 8115 is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.
This cable features 15 pairs of 24 AWG, 7-strand tinned copper conductors with an overall Beldfoil/Tinned Copper Braid shield. Rated for 30V, the cable uses Datalene insulation and a Polyvinylchloride (PVC) jacket. The cable operates up to 80C and is approved to NEC Type CM standards. Approximate weight is 116 lbs/MFT with Chart 5 color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
How many pairs does Belden 8115 have?
Belden 8115 contains 15 pairs.
What is the voltage rating of Belden 8115?
This cable is rated for 30 volts.
What shielding does Belden 8115 have?
Belden 8115 has an overall Beldfoil/Tinned Copper Braid shield.
What NEC type is Belden 8115?
Belden 8115 is rated NEC Type CM.
8115
Part Number
8115
Attributes
116
24
Chart 5
Tinned Copper
7/32
33 AWG Stranded Tinned Copper
Datalene
Polyvinylchloride (PVC)
80C
CM
15
7
12.5
22
24.0O/M'
2.6O/M'
100
0.495
Overall Braid and Foil Shield
100% & 65%
Beldfoil/Tinned Copper Braid
32
2919
0.78
30
