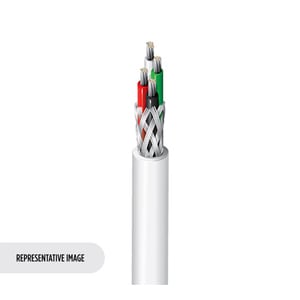

83335E - Instrumentation Cable (20 AWG, 600V)
Belden 83335E is a instrumentation cable designed for industrial instrumentation and control applications.
This cable features 3 conductors of 20 AWG, 19-strand silver-plated copper conductors with an overall Silver-Plated Copper Braid shield. Rated for 600V, the cable uses Tetrafluoroethylene (TFE) insulation and a Tetrafluoroethylene (TFE) Tape jacket. The cable operates from -65C to 200C. Approximate weight is 28 lbs/MFT with White/Black/Red color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 83335E?
Belden 83335E features 20 AWG conductors.
What is the voltage rating of Belden 83335E?
This cable is rated for 600 volts.
What shielding does Belden 83335E have?
Belden 83335E has an overall Silver-Plated Copper Braid shield.
What is the temperature rating for Belden 83335E?
Belden 83335E is rated for operation up to 200C.
83335E
Part Number
83335E
Attributes
3
28
20
White, Black, Red
Silver-Plated Copper
19/32
Tetrafluoroethylene (TFE)
Tetrafluoroethylene (TFE) Tape
0.011
200C
-65C
19
31.7
51
7.3
4.4
0.010
0.168
Overall Braid Shield
85%
Silver-Plated Copper Braid
32
600
