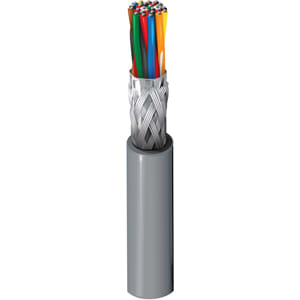

8345 - Instrumentation Cable (24 AWG, 15-Pair, 300V)

Belden 8345 is a multi-pair instrumentation cable designed for industrial instrumentation and control applications.

This cable features 15 pairs of 24 AWG, 7-strand tinned copper conductors with an overall Beldfoil/Tinned Copper Braid shield. Rated for 300V, the cable uses Semi-Rigid Polyvinylchloride (SR-PVC) insulation and a Polyvinylchloride (PVC) jacket. The cable operates up to 80C and is approved to NEC Type CMG and CSA Type AWM I A standards. Approximate weight is 123 lbs/MFT with Chart 5 color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

How many pairs does Belden 8345 have?

Belden 8345 contains 15 pairs.

What is the voltage rating of Belden 8345?

This cable is rated for 300 volts.

What shielding does Belden 8345 have?

Belden 8345 has an overall Beldfoil/Tinned Copper Braid shield.

What NEC type is Belden 8345?

Belden 8345 is rated NEC Type CMG.
