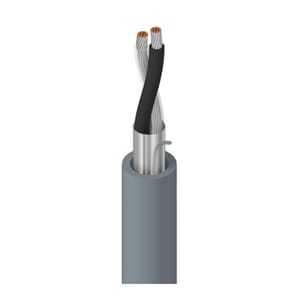

8761 - Instrumentation Cable (22 AWG, 300V)
Belden 8761 is a instrumentation cable designed for industrial instrumentation and control applications.
This single-pair cable features 22 AWG, 7-strand tinned copper conductors with an overall Beldfoil shield. Rated for 300V, the cable uses Polyethylene (PE) insulation and a Polyvinylchloride (PVC) jacket. The cable operates from -20C to 60C and is approved to NEC Type CM standards. Approximate weight is 18 lbs/MFT with Black/Clear color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 8761?
Belden 8761 features 22 AWG conductors.
What is the voltage rating of Belden 8761?
This cable is rated for 300 volts.
What shielding does Belden 8761 have?
Belden 8761 has an overall Beldfoil shield.
What NEC type is Belden 8761?
Belden 8761 is rated NEC Type CM.
8761
Part Number
8761
MFG #
8761 06010000
Attributes
18.00
22
Black, Clear
Tinned Copper
7/30
22 AWG Stranded Tinned Copper
112202
Polyethylene (PE)
Polyvinylchloride (PVC)
0.025
60C
-20C
CM
1
7
24
47
0.016
0.175
Overall Foil Shield
1
Beldfoil
30
2092
300
