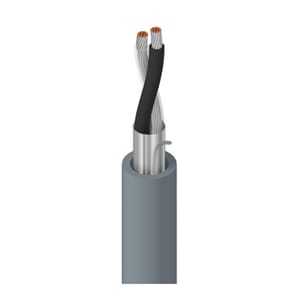

8762 - Instrumentation Cable (20 AWG, 300V)
Belden 8762 is a instrumentation cable designed for industrial instrumentation and control applications.
This single-pair cable features 20 AWG, 7-strand tinned copper conductors with an overall Beldfoil shield. Rated for 300V, the cable uses Polyethylene (PE) insulation and a Polyvinylchloride (PVC) jacket. The cable operates from -20C to 60C and is approved to NEC Type CM standards. Approximate weight is 23 lbs/MFT with Black/Clear color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 8762?
Belden 8762 features 20 AWG conductors.
What is the voltage rating of Belden 8762?
This cable is rated for 300 volts.
What shielding does Belden 8762 have?
Belden 8762 has an overall Beldfoil shield.
What NEC type is Belden 8762?
Belden 8762 is rated NEC Type CM.
8762
Part Number
8762
MFG #
8762 06010000
Attributes
23.00
20
Black, Clear
Tinned Copper
7/28
20 AWG Stranded Tinned Copper
5048
Polyethylene (PE)
Polyvinylchloride (PVC)
0.028
60C
-20C
CM
1
7
27
49
0.016
0.204
Overall Foil Shield
1
Beldfoil
28
2092
300
