8771 - Instrumentation Cable (22 AWG, 300V)
Belden 8771 is a instrumentation cable designed for industrial instrumentation and control applications.

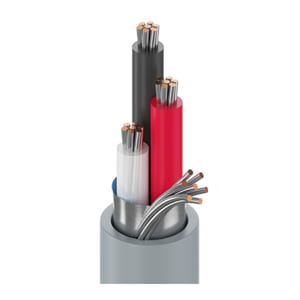

This cable features 3 conductors of 22 AWG, 7-strand tinned copper conductors with an overall Beldfoil shield. Rated for 300V, the cable uses Polyethylene (PE) insulation and a Polyvinylchloride (PVC) jacket. The cable operates from -20C to 60C and is approved to NEC Type CM standards. Approximate weight is 240 lbs/MFT with Black/Red/Clear color coding.
To explore additional configurations and related part numbers, browse the full Belden cable product line.
Contact Allied Wire & Cable for pricing, availability, and technical support.
Frequently Asked Questions
What is the conductor size of Belden 8771?
Belden 8771 features 22 AWG conductors.
What is the voltage rating of Belden 8771?
This cable is rated for 300 volts.
What shielding does Belden 8771 have?
Belden 8771 has an overall Beldfoil shield.
What NEC type is Belden 8771?
Belden 8771 is rated NEC Type CM.
8771
Part Number
8771
MFG #
8771 06010000
Attributes
3
240.00
22
Black, Red, Clear
Tinned Copper
7/30
22 AWG Stranded Tinned Copper
5052
Polyethylene (PE)
Polyvinylchloride (PVC)
0.033
60C
-20C
CM
7
23
41
0.016
0.199
Overall Foil Shield
100%
Beldfoil
30
2093
300
